Existe en version magnétique ou à percer ( 40€ ttc ), trés pratique et performante pour ceux qui ne veulent ( ou peuvent ) mettre plus grand.
Features:
• CB Mobile antenna
• Tunable by screw or unscrew the metallic ring
• 17/7 PH tapered stainless steel whip
• 180° inclination and adjustable whip, detachable for car-wash
• Wide range of optional mounting bases available
• Suitable for magnetic mount

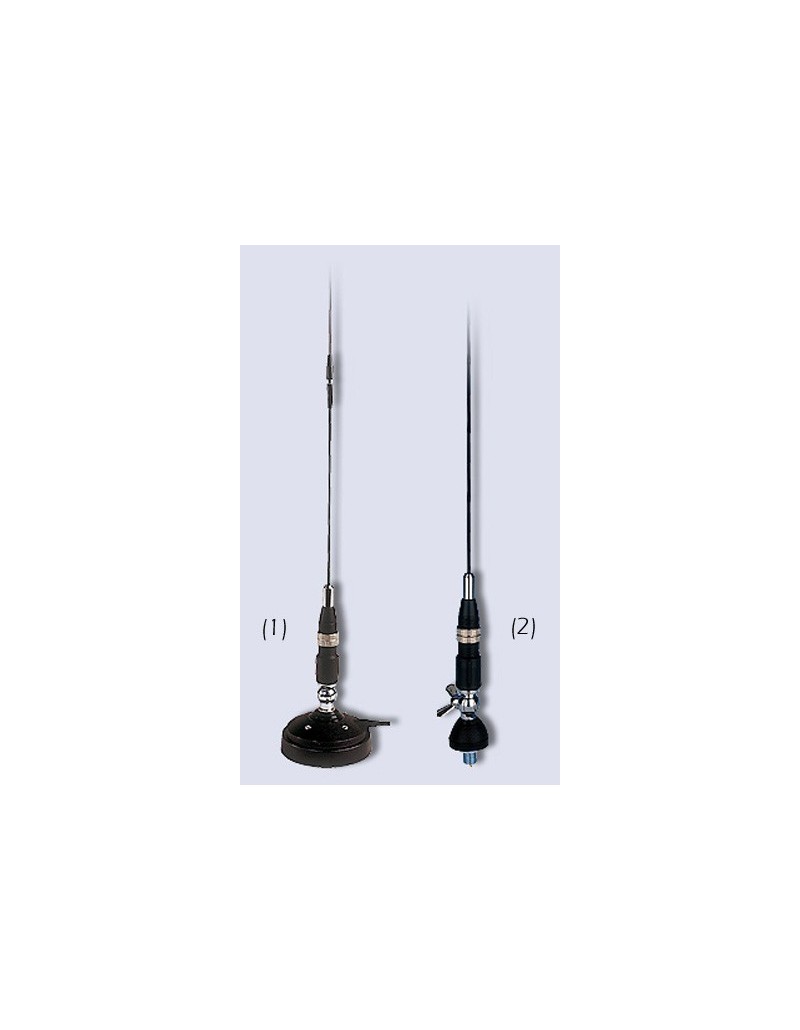

P/N 2204306.01 SNAKE 27
P/N 2204406.01 MINI SNAKE 27
P/N 2204406.61 MINI SNAKE 27 MAG
Electrical Data
• Type: CB base loaded
• Frequency range tunable: 26.5...27.4 MHz
• Impedance: 50Ω unbalanced
• Radiation (H-plane): 360° omnidirectional
• Polarization: vertical
• Bandwidth @ SWR ≤ 2:
SNAKE 27: ≥ 1800 KHz (160 channel)
MINI SNAKE 27, MINI SNAKE 27 MAG: ≥ 1000 KHz (90 channel)
• SWR @ res. freq.: ≤ 1.2
• Max. power: 10 Watts (CW) continuous, 40 Watts (CW) short time
• Standard mount:
SNAKE 27, MINI SNAKE 27: 'N'
MINI SNAKE 27 MAG: magnetic
• Cable lenght / Type:
SNAKE 27, MINI SNAKE 27: 4 m / RG 58
MINI SNAKE 27 MAG: 3.6 m / RG 58
Mechanical Data
• Materials: Brass, Copper, Nylon, Stainless Steel
• Height (approx.):
SNAKE 27: 1125 mm
MINI SNAKE 27: 650 mm
MINI SNAKE 27 MAG: 690 mm
• Weight (approx.):
SNAKE 27, MINI SNAKE 27: 350 gr
MINI SNAKE 27 MAG: 770 gr
• Mounting hole: Ø 12.5 mm (SNAKE 27, MINI SNAKE 27 only)
